Operating in the 1.9GHz band, the 200 and 202 Series Wireless Intercoms deliver interference free, resilient communication essential for any critical fixed or mobile broadcast production environment. Featuring full duplex, hands free communication these flexible wireless intercoms combine exceptional sound clarity with simple set up and ease of use.

Key benefits:

• Interference free communications thanks to use of the 1.9GHz band.
• Support for up to 4 wireless or 20 wired beltpacks, with flexible group creation to split and filter communications.
• Alert function for use in noisy environments.
• Expansive design allows for simple connection of external antennas to boost signals if required.
• Visual indicators show beltpack status at a glance, simplifying operation.

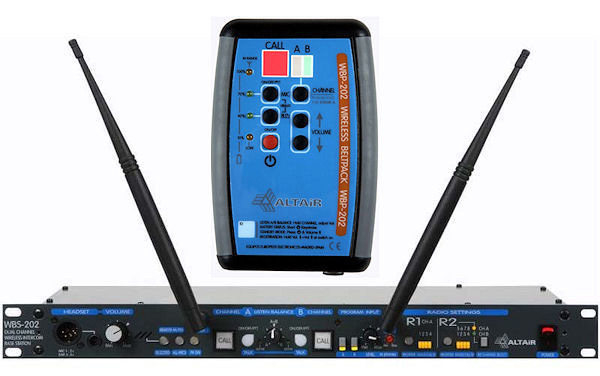

With a capacity for 4 single channel beltpacks, the 200 base station allows direct connection to a matrix intercom/programme source, like Trilogy Messenger , or to a mic/headset for a local operator. The dual channel 202 base station introduces further flexibility by enabling beltpacks to be grouped according to crew requirements, either as a single ring or as two rings using combinations of the single and dual beltpacks .

Both the 200 and 202 base stations include provision to connect up to 20 party-line wired beltpacks in two circuits, thereby allowing an integrated wireless/wired solution. A ‘call’ function, activated from the base station or beltpacks provides a convenient means of alerting operators in noisy environments.

The base stations afford the benefits of front panel detachable antennas with the ability to connect external antennas, either standard or directional to optimise reception over the desired area.

The accompanying beltpacks are equipped with controls for:

• Call.
• Volume level.
• Microphone on/off.
• Buzz/vibrator on/off together

Each unit is also fitted with indicators reporting battery, call and ‘in range’ status. Both dynamic and electret microphone types are accommodated according to the specific needs of your installation/application.

Beltpacks are fitted with NiMH rechargeable batteries providing up to 50 hour operation on standby receive and 10 hours in conversation mode. Systems are supplied with a worldwide voltage, 3 hour rapid charger capable of charging 4 beltpacks simultaneously.

• Learn more about the 200 and 202 digital wireless intercom units by downloading the product brochure (2.07 MB)

Specifications
